Cables
Cable Construction Designs
  • Solid and Stranded Conductors
  • Single & Multipair cables
  • Shielded cables
  • Armored cables
Thermocouple Cable Counductor Types
  • Original Thermocouple wire conductors
  • Extension type conductors
  • Compensating type conductors

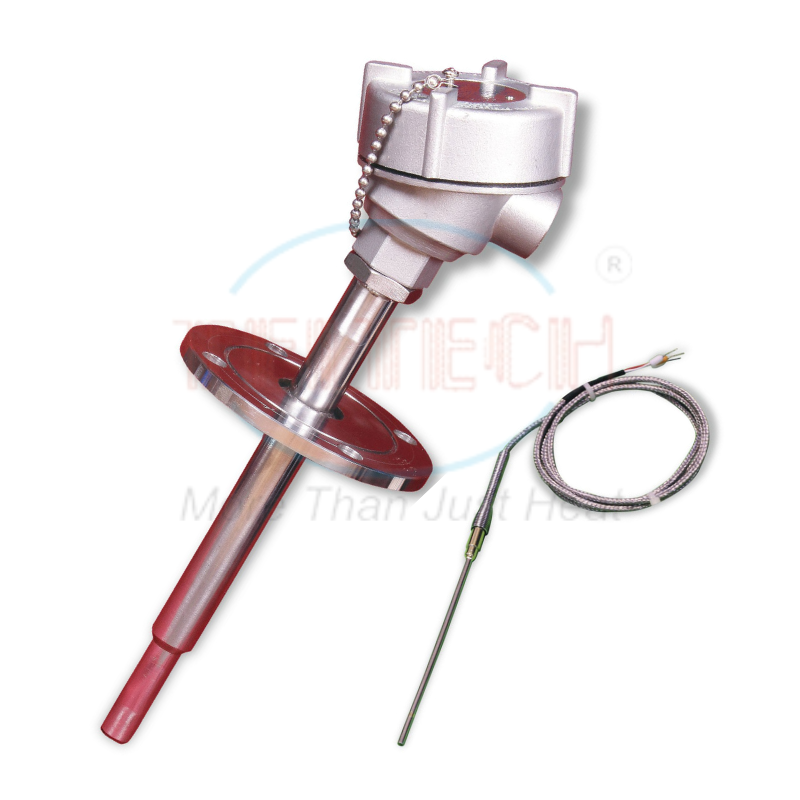

RTD Cable Counductor Types:
  • Silver Plated Copper Counductors
  • Annealed Bare Copper Counductors
  • Nickel Plated Copper Counductors
Cable Insulation Types AND Temperature Ranges
  • Pvc (Minimum Operating Temp -50 °C & Max Operating Temperature 100 °C )
  • Silicon (Minimum Operating Temp -50 °C & Max Operating Temperature 150 °C)
  • Teflon (Minimum Operating Temp -260 °C & Max Operating Temperature 250 °C)
  • Fibreglass (Minimum Operating Temp -70 °C & Max Operating Temperature 500 °C)
  • Ceramic Fibre (Minimum Operating Temp -70 °C & Max Operating Temperature 800 °C)
  • Alumina Fibre (Minimum Operating Temp -70 °C & Max Operating Temperature 1200 °C)

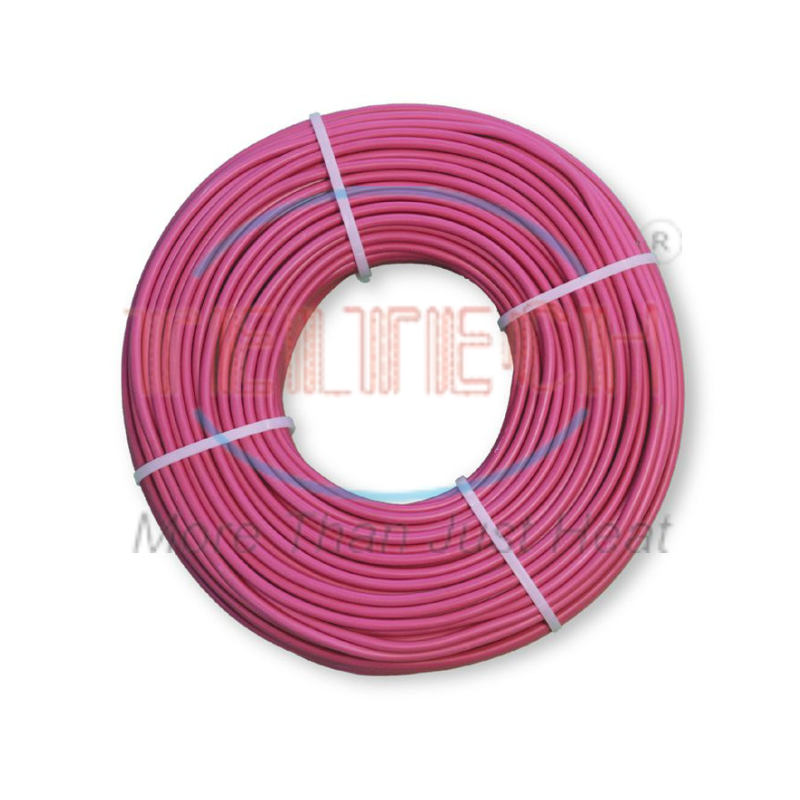

PVC
PVC

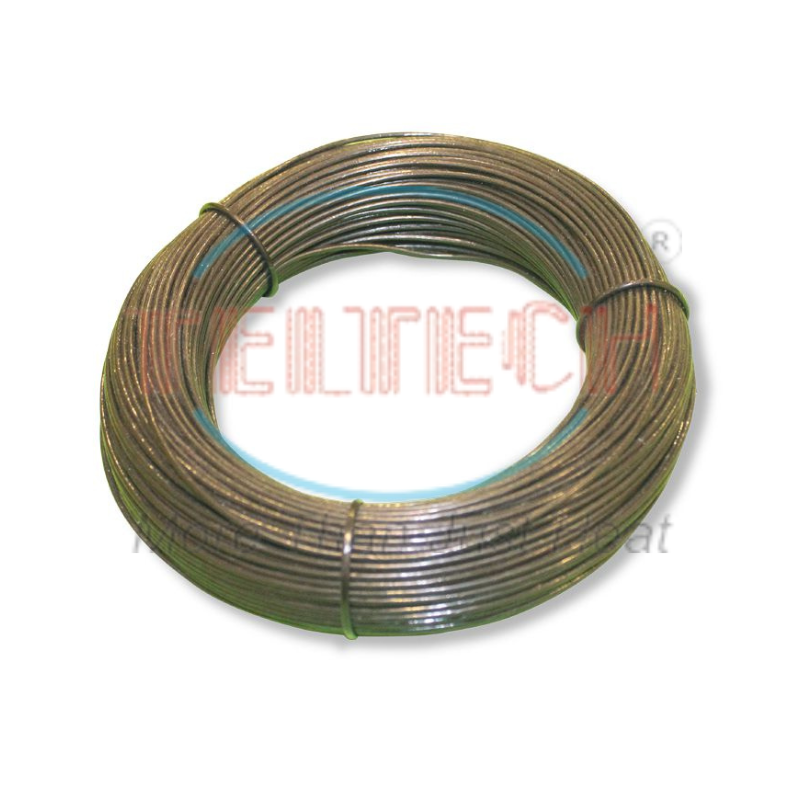

Teflon
Teflon

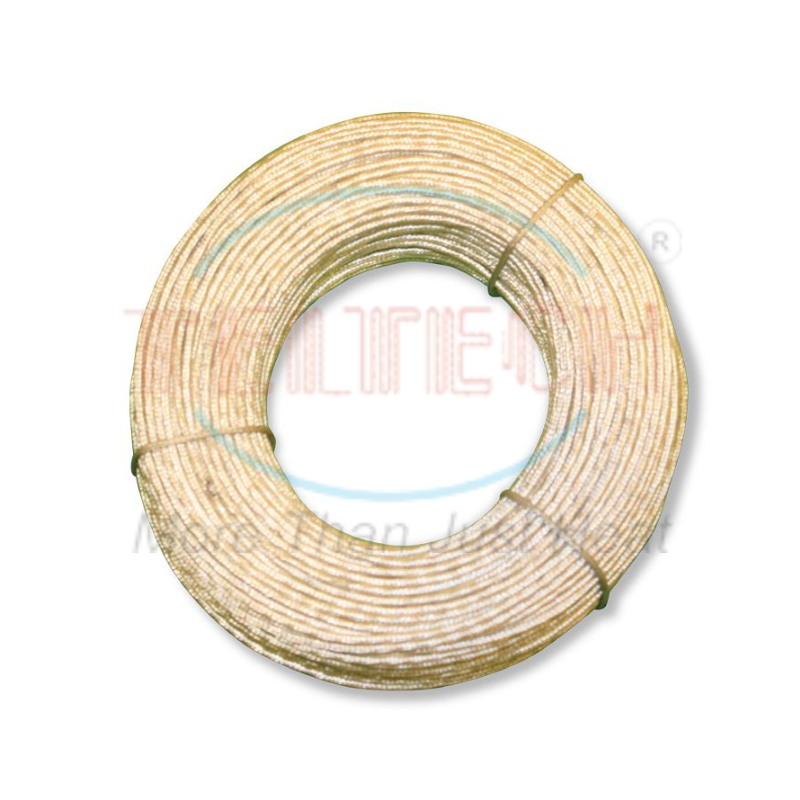

Fibre Glass
Fibre Glass

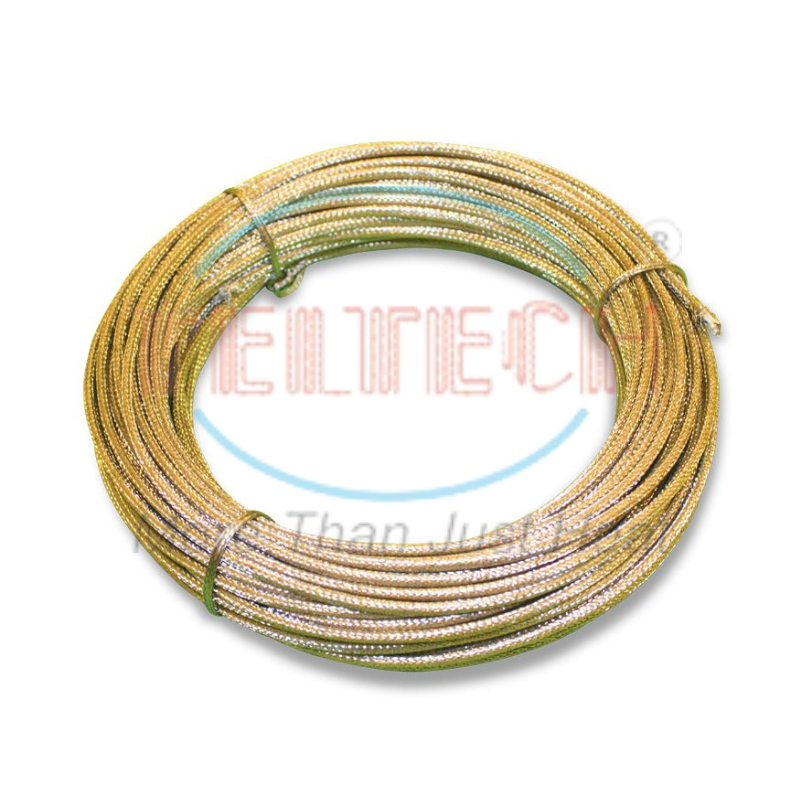

SS Braided
SS Braided

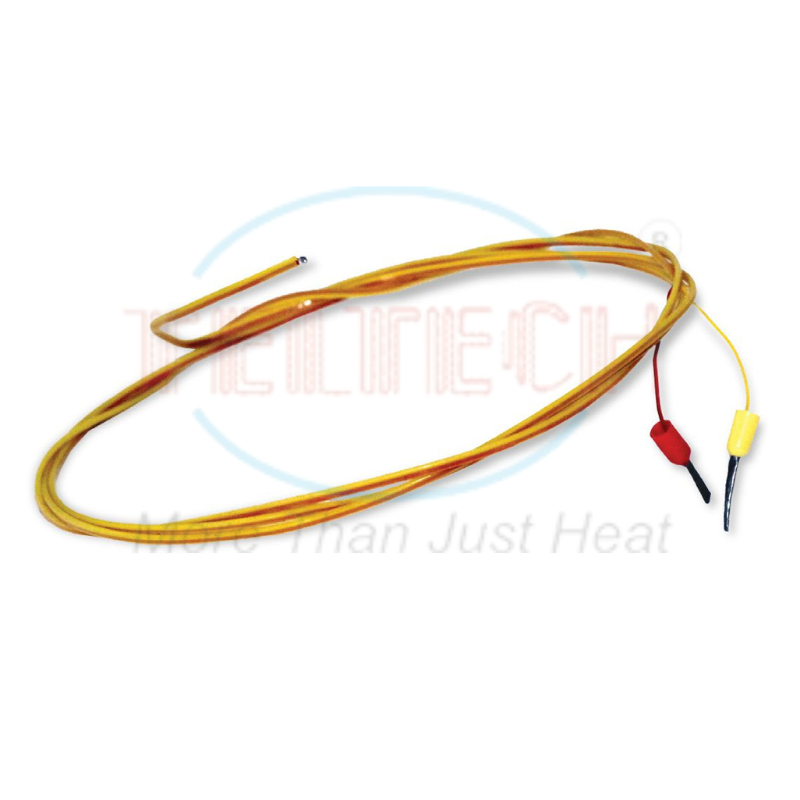

One End Fused
One End Fused

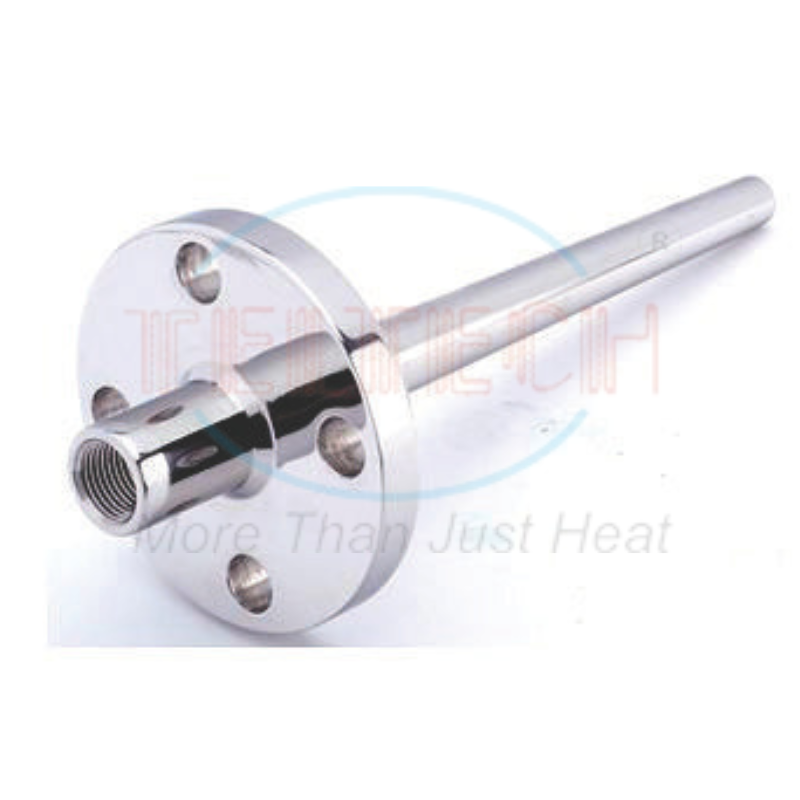

  • Types : Cylindrical Bar Stock, Bar Stock For Welding, Tube Stock With Narrowed Tip
  • Std Thermowell Materials SS 304, 316, 316L, 310, Inconel 600, Inconel 800
  • For Special Applications Monel, Hastelloy, Sandvik Af & APM, Ceramic, Ptfe Coating, Silicon Nitrade , Carbide & Graphite For Molten Metals.

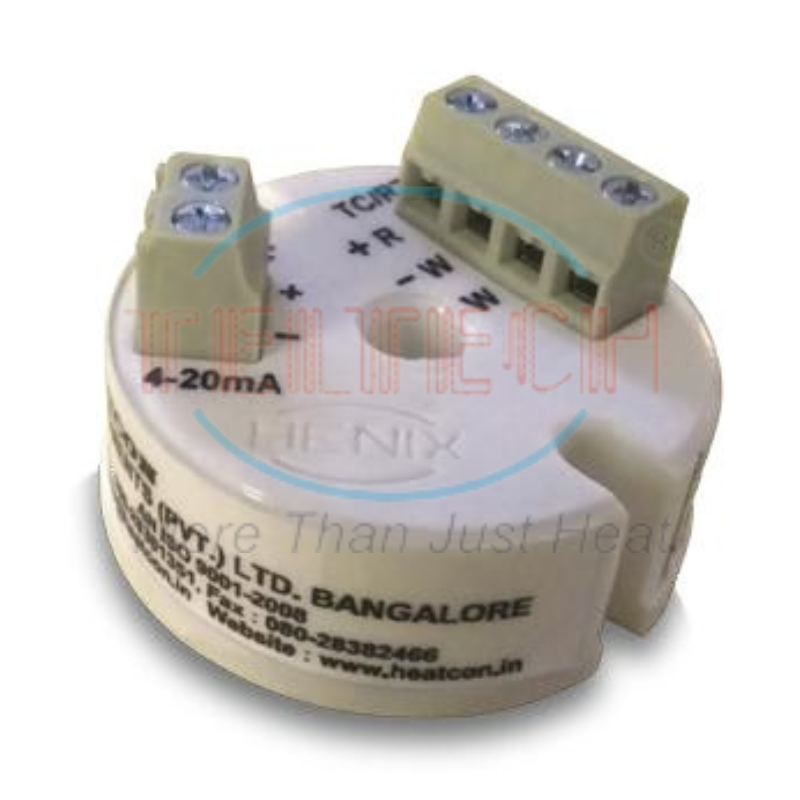

Head Mounted
Head Mounted

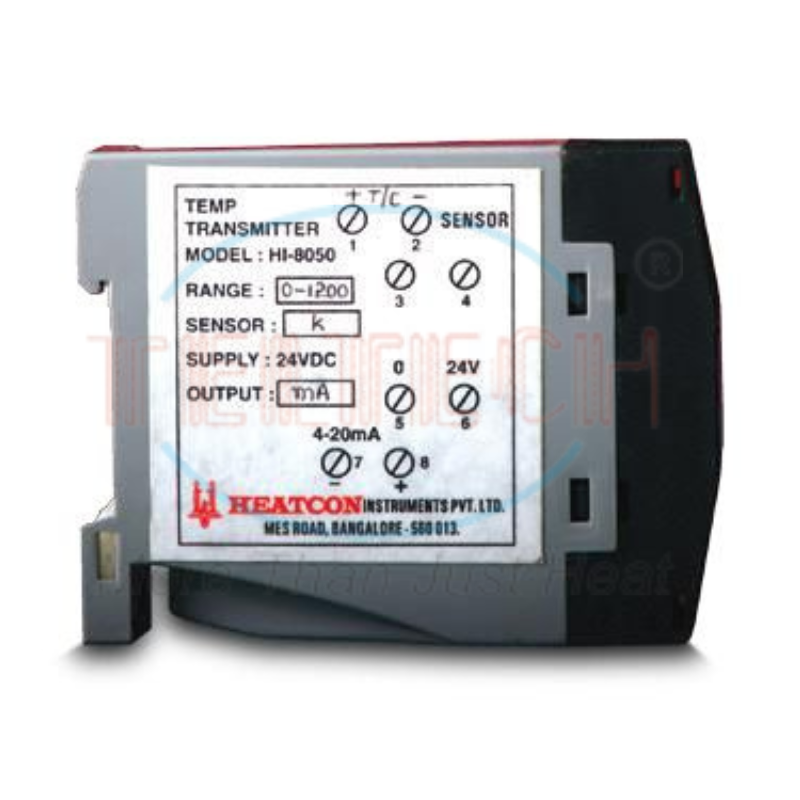

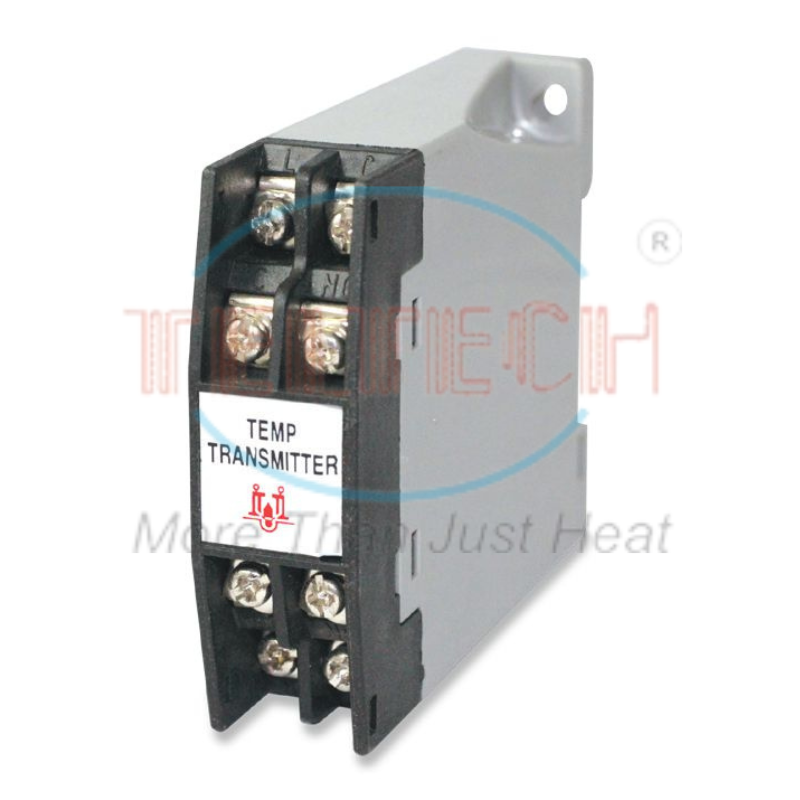

Din Rail
Din Rail

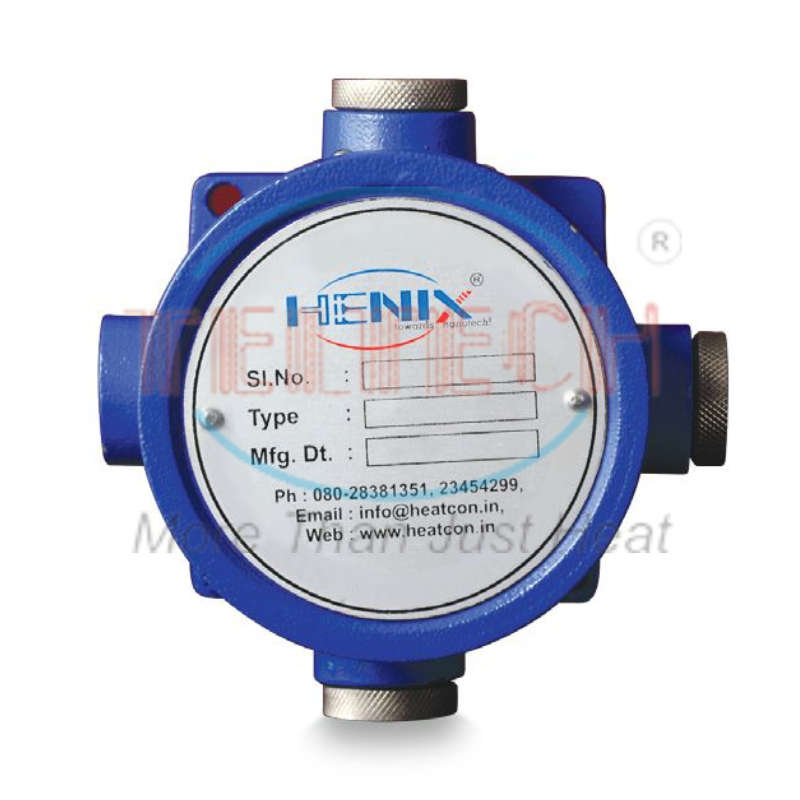

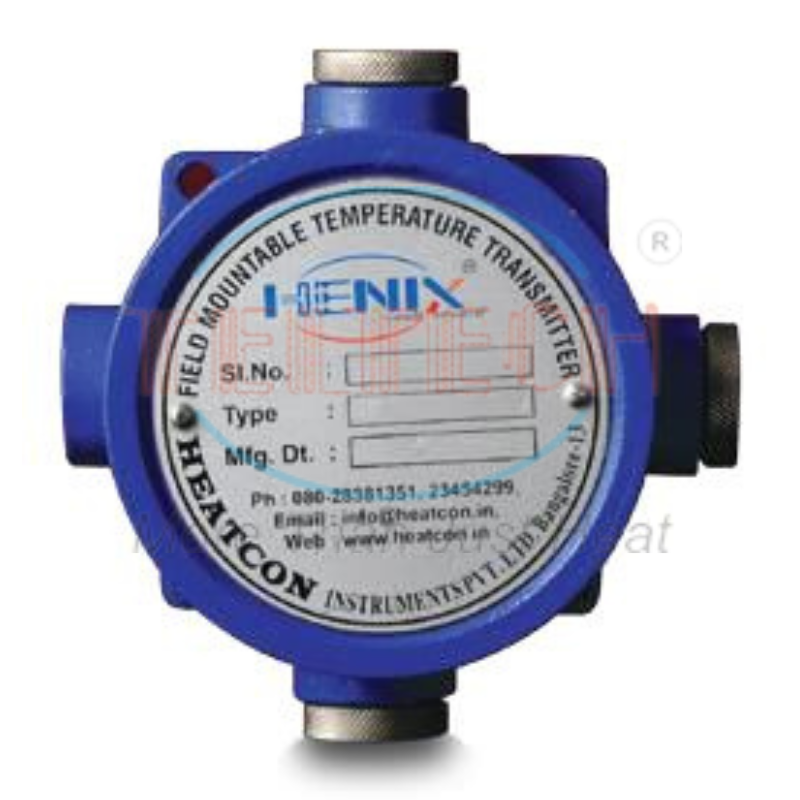

Field Mounted
Field Mounted

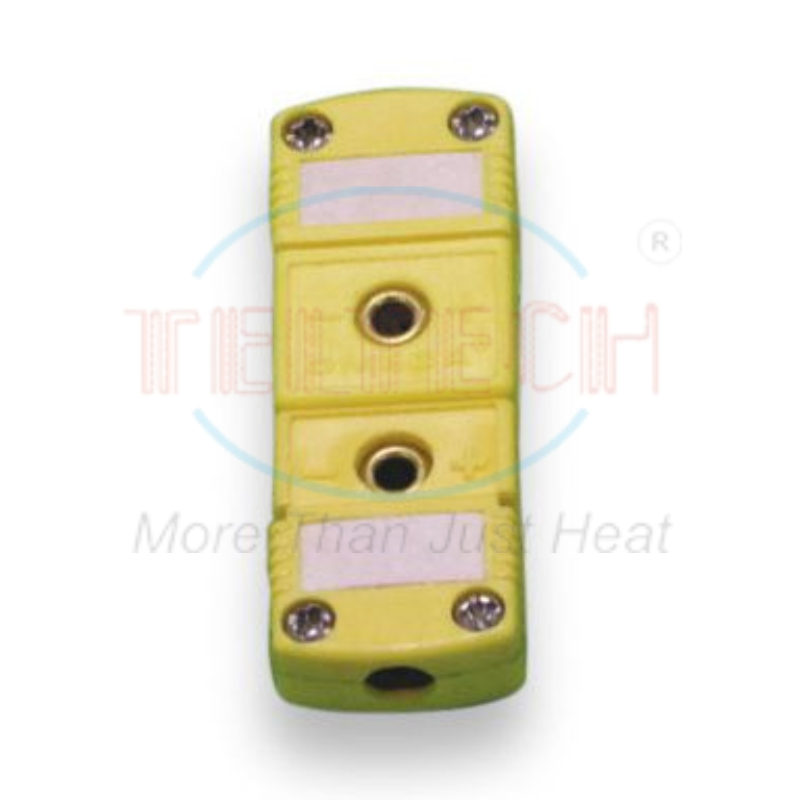

Miniature
Miniature

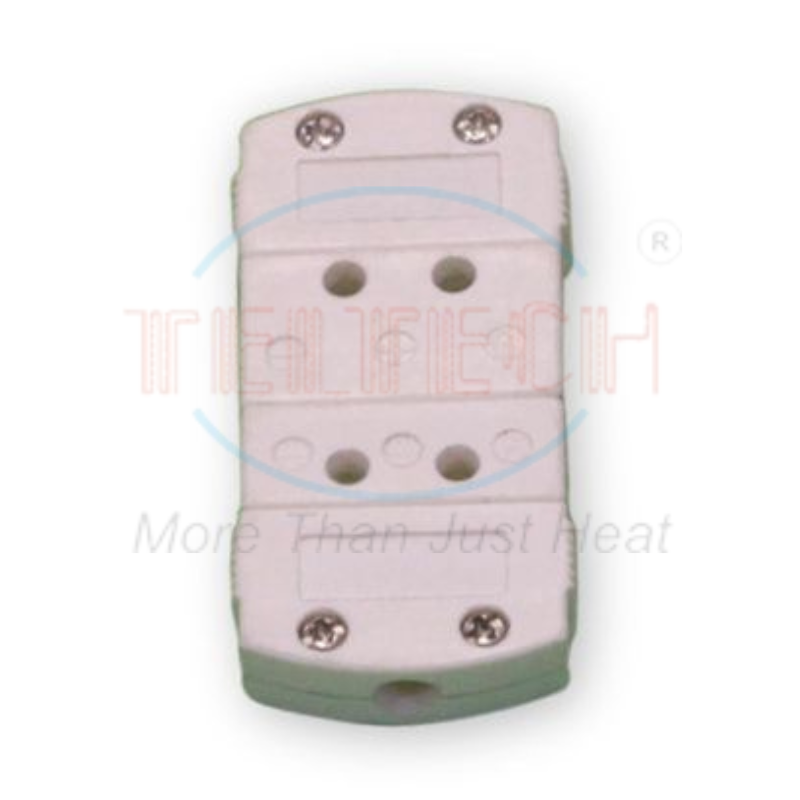

3 Pin RTD
3 Pin RTD

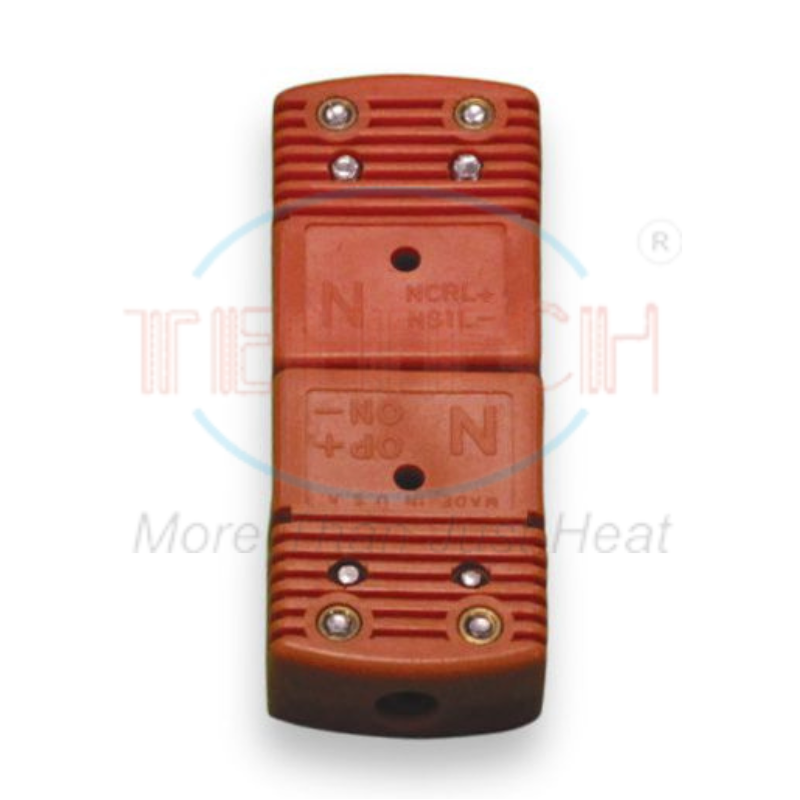

Standard
Standard

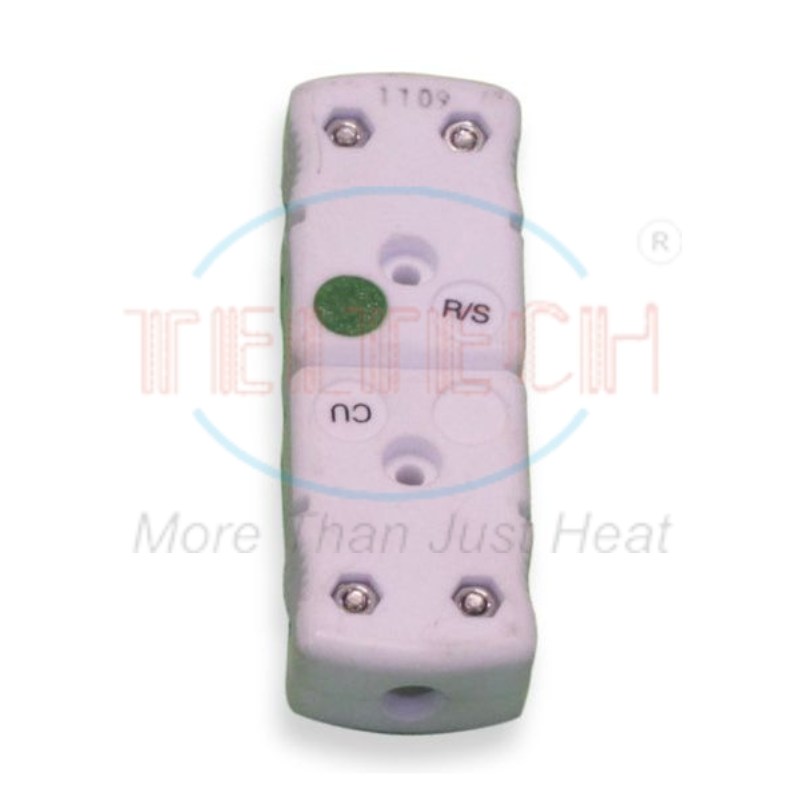

Ceramic Hi Temp
Ceramic Hi Temp
